Enhancing Imaging Precision with Optotune Autofocus Lens in the Navitar Zoom 6000 System

Introduction:

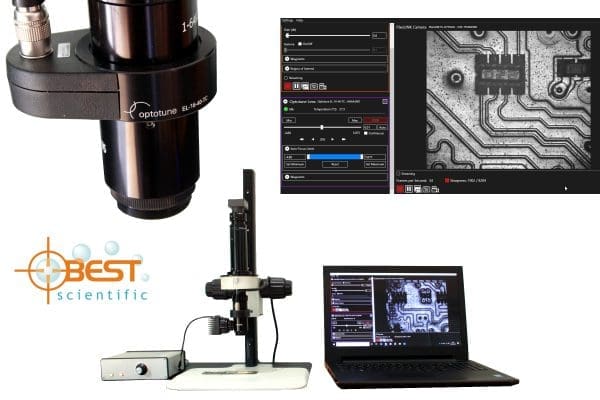

I recently had the privilege of evaluating the Autofocus Lens from Optotune, integrated into the advanced Zoom 6000 optical vision system by Navitar. This comprehensive system included key components:

• Pixelink monochrome camera
• Camera adapter tube
• 6.5:1 manual zoom unit

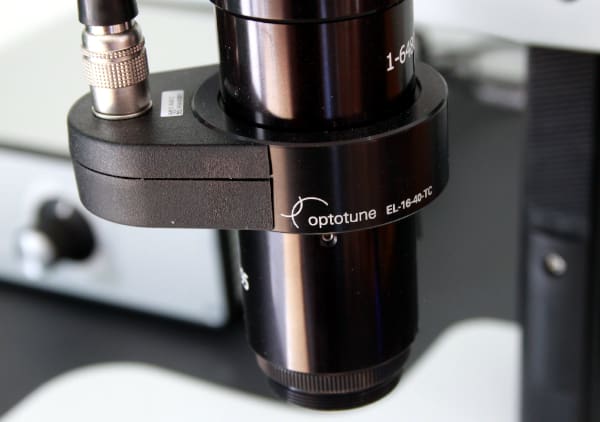

• Optotune Autofocus module
• Coaxial illumination with LED,
• Accompanying mounting and focus hardware.

Flexibility and Configurability:

The standout feature of this system is its impressive flexibility and configurability. Designed to seamlessly integrate with two modular vision systems from Navitar –Namely the Zoom 6000 for variable magnification and the Precise Eye system for fixed magnification. These products offer a myriad configuration options. The autofocus module serves as a powerful imaging tool, expanding the capabilities of these systems for diverse applications.

User-Friendly Interface:

One notable aspect is the user-friendly interface. The Optotune autofocus and the camera both utilize standard USB interfaces, eliminating the need for additional peripherals and ensuring a straightforward PC/laptop connection. The system is designed with simplicity in mind, allowing users to easily navigate and control the imaging process.

Software Control:

The system’s software control is both robust and intuitive. The camera and liquid lens are managed through a standard program supplied with the system. While a standard version is available, users also have the option to customize commands for personalized control. The software interface is divided into sections for sample viewing, camera control, and autofocus control, providing a seamless and efficient workflow.

Autofocus Performance:

Controlling the autofocus is a seamless experience with a dedicated button. The system swiftly adjusts focus in real-time, responding promptly to manual adjustments in working distance or sample movement. Additional features such as focus jogging and a slider bar for precise adjustments contribute to intuitive operation. Although the autofocus system demonstrated reliable performance, occasional delays were observed during intense testing scenarios.

Optimisation and Real-Time Imaging:

The software facilitates real-time adjustments as users optimize camera settings and illumination. As I fine-tuned various parameters during my testing, the autofocus performance consistently improved. The system’s ability to adapt to changes in sample areas was commendable, although occasional moments of confusion were noted during rigorous testing conditions.

Future Applications and Remote Inspection:

The system boasts applications for remote inspection, allowing it to operate within clean or controlled environments. Future testing with a lower magnification Precise Eye fixed system is anticipated, as it has the potential to extend working distances and enhance depth of field – crucial features in various imaging applications.

Conclusion:

The Optotune Autofocus Lens integrated into the Navitar Zoom 6000 system is a remarkable tool with diverse practical applications. Its ease of use, coupled with advanced features, positions it as an asset for users seeking precision in their vision system applications. For further inquiries or assistance with your vision system configuration please do contact us.
