1× Mitutoyo M-Plan Apo Objective Lens

Description

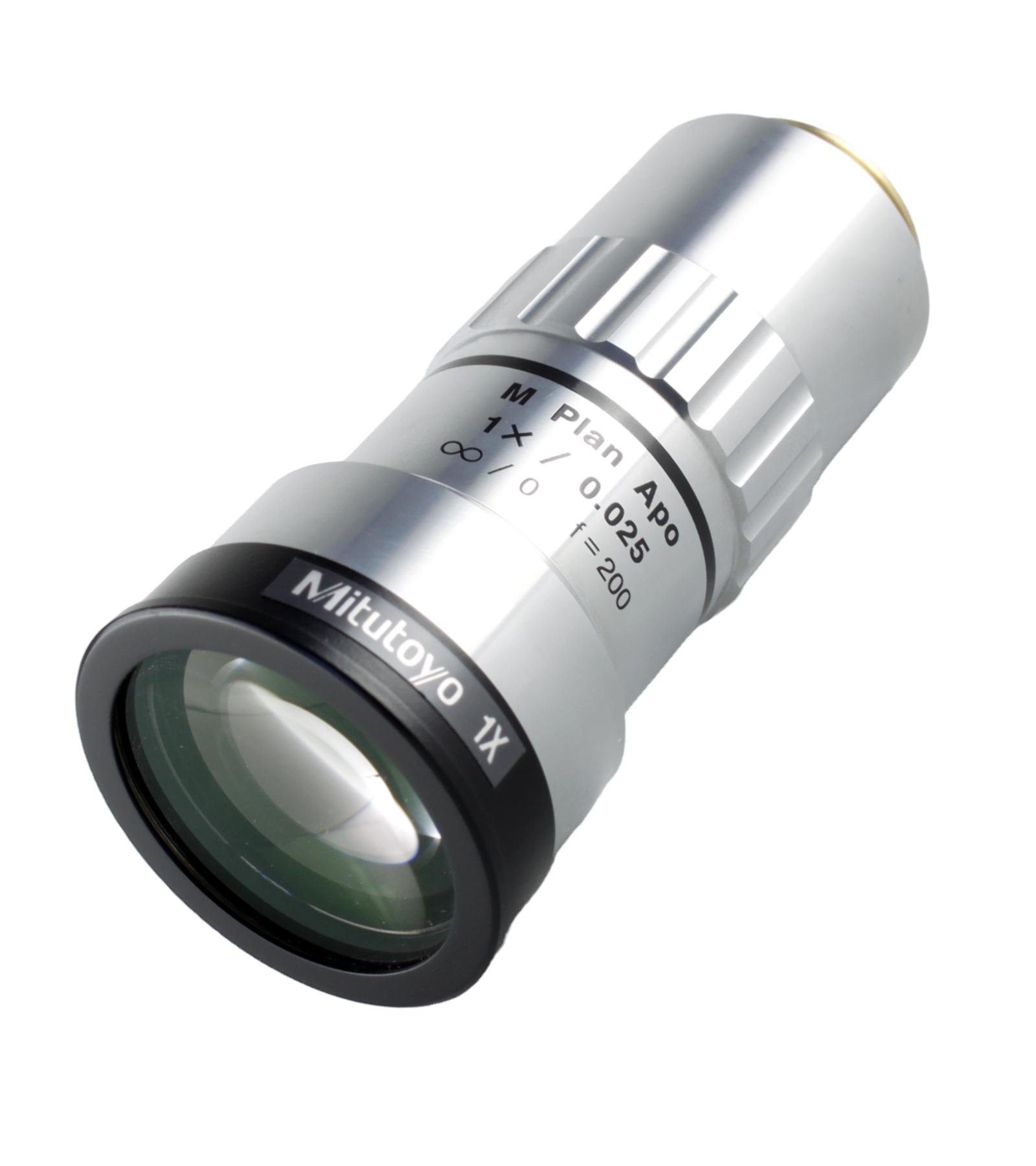

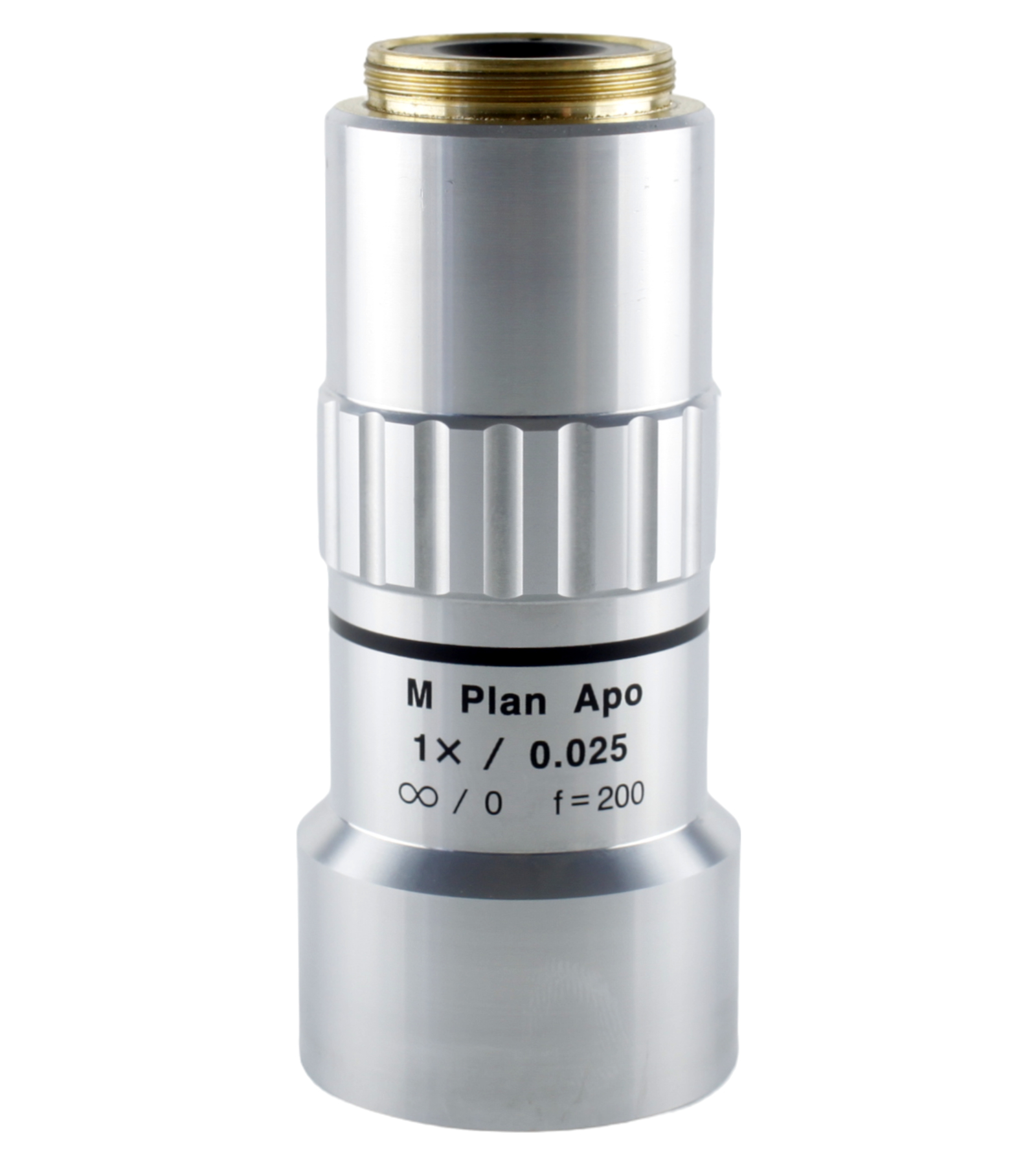

The Mitutoyo 1× M-Plan Apo Objective Lens (part no. 378-800-12) is a high-performance, plan-apochromatic objective designed for advanced imaging and integration into vision systems. Manufactured to exacting standards, Mitutoyo objectives are widely recognised as the industry benchmark for high-resolution microscopy and machine vision applications.

As part of the M-Plan Apo series, this lens delivers a flat image across the entire field of view while correcting for chromatic aberrations across three wavelengths (red, blue, yellow). The infinity-corrected optical design makes it easy to integrate into custom optical systems, while long working distances provide flexibility for sample handling and inspection setups.

Ideal for brightfield observation in the visible spectrum, the Mitutoyo 1× M-Plan Apo ensures consistent clarity, precision, and reliability in demanding laboratory, research, and industrial inspection environments.

1× Mitutoyo M-Plan Apo Key Specifications:

• Part Number: 378-800-12
• Magnification: 1×
• Numerical Aperture (NA): 0.042
• Working Distance: 20 mm
• Focal Length: 10 mm
• Resolving Power: 0.7 μm
• Depth of Field: 1.6 μm
• Interface Thread: M26 × 36T
• Parfocal Distance: 95 mm
• Tube Length: 200 mm (compatible)
• Wavelength Range: 435–655 nm
• Dimensions: 75 mm (L) × 34 mm (ø)
• Weight: 270 g
• Delivery: Approx. 1-2 weeks

Series Features (Mitutoyo M-Plan Apo)

• Plan-corrected for a flat image across the full field of view
• Apochromatic design (3-colour correction: red, blue, yellow)
• Infinity-corrected optics for straightforward system integration
• Brightfield observation in the visible spectrum
• Long working distances for easier specimen access

System Integration:

The Mitutoyo 1× M-Plan Apo is designed for seamless use in advanced microscopy and machine vision systems, including:

• Mitutoyo VMU – Video Microscope Unit
• Navitar Resolv4K Zoom System
• Navitar Resolv4K Fixed Magnification
• Navitar 12x Zoom System
• Navitar Zoom 6000 System
• Navitar Precise Eye Lenses
• Optem FMOS Fixed Magnification
• Optem Fusion Zoom System
• Optem Fusion Fixed Magnification
• Optem 70XL Zoom System
• Optem 125C Zoom System

Relevant Case Studies:

• One Zoom Two Configurations
• Fixed Magnification SWIR Optics

contact us for full system configuration, quotation, build, and supply.

Compare Mitutoyo M-Plan Apo Objective Lenses:

Use this quick reference to select the right Mitutoyo M-Plan Apo objective for your imaging application.
All models are infinity-corrected, plan-apochromatic, and designed for brightfield use with long working distances.

Note: Higher NA objectives provide greater resolution but reduced depth of field. Choose the magnification that best matches your sample and application.
