Description

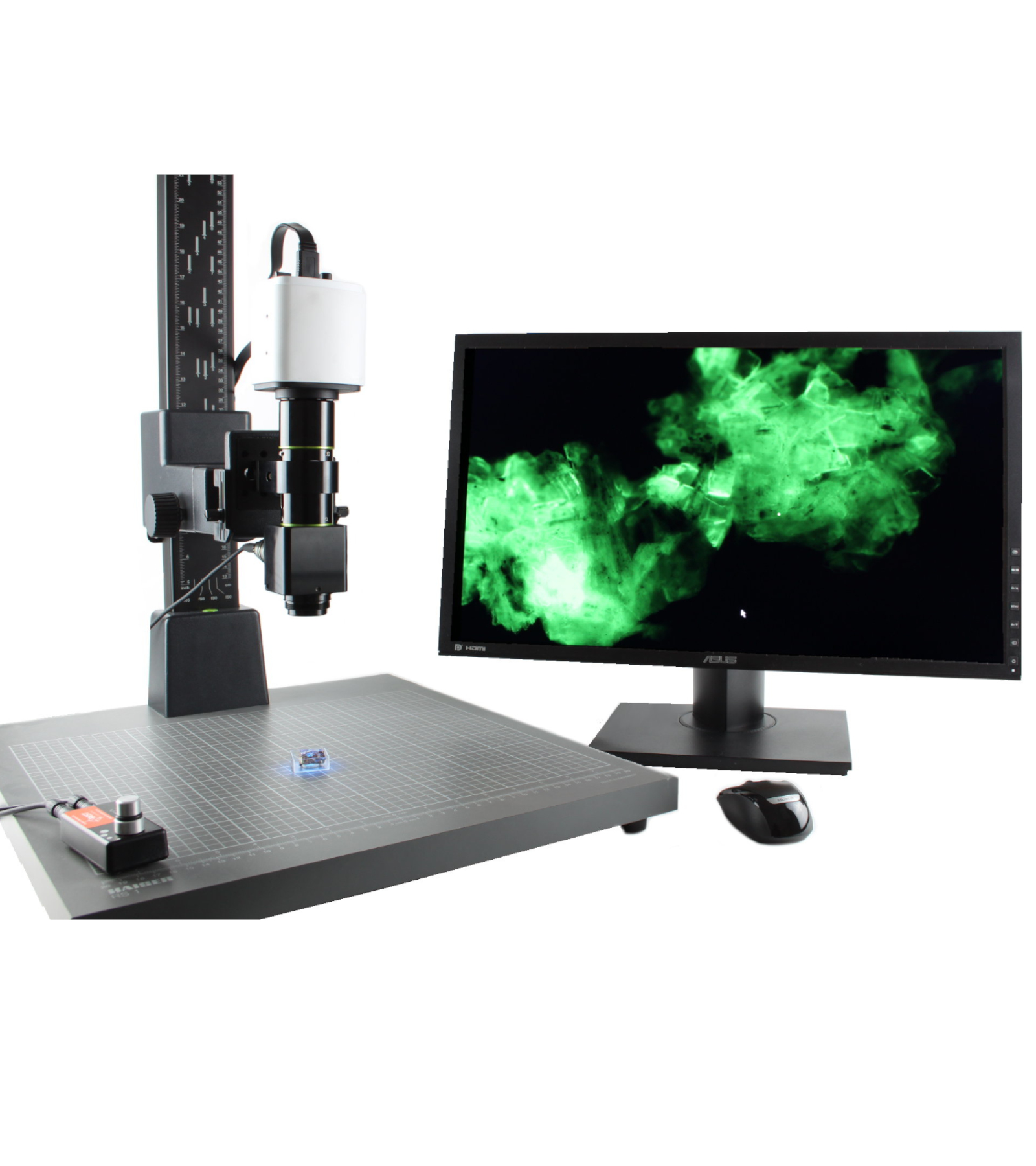

The Euromex HD-Ultra HDMI Microscope Camera (VC.3036) is one of the most versatile and user-friendly imaging solutions for microscopy, inspection, education, and industrial workflows. Designed to deliver smooth, true-to-life HD images in real time, the camera offers two powerful modes of operation: stand-alone HDMI control or full PC control via USB.

Stand-Alone Mode (No Computer Required)

For fast, flexible operation, simply connect the HD-Ultra camera directly to any HDMI monitor, TV-HD, or projector. The camera’s internal software—controlled using the included USB mouse—allows you to capture 3264 × 1836 pixel still images or record 1080p video directly to the onboard SD card. Automatic exposure, white balance, and processing functions keep imaging simple, while manual controls allow fine tuning when required.
Users can also perform live measurement functions including lines, angles, polygons, circles, radii and free-form paths, with results exportable as TXT or CSV files. This makes the camera ideal for live inspections, demonstrations, and on-the-fly documentation.

PC-Controlled Mode via ImageFocus Software

When connected to a Windows or macOS computer via USB, the HD-Ultra unlocks extended functionality through Euromex ImageFocus software. Users gain full control of exposure, gain, colour correction, measurement tools, image annotation, time-lapse capture, image overlay, and fluorescence-specific controls such as histogram adjustment and multi-image merging. Images can be saved in JPG, TIFF, BMP, and videos recorded in AVI format directly to your computer.

Ideal for Modern Microscopy and Vision Systems

Thanks to its high-sensitivity Sony CMOS sensor, the HD-Ultra provides clean, low-noise, colour-accurate imaging for biological, metallurgical, stereo, and industrial microscopes. Its dual-mode operation makes it suitable for laboratories, manufacturing environments, teaching, R&D, and live presentations.

Best Scientific can configure the camera for seamless use with your optical system and provide advice on couplers, adapters, and workflow optimisation.

Euromex HD-Ultra HDMI Microscope Camera (VC.3036) Specifications:

• Sensor: Sony CMOS
• Sensor Format: 1/2.8″, HDTV 1080p (50/60 Hz)
• Pixel Size: 2.8 × 2.8 µm
• Still Image Resolution: 3264 × 1836 (6 MP)
• Live Image Resolution: 1920 × 1080 (2 MP HD)
• Frame Rate: HDMI 60 fps, USB 30 fps
• Video Recording: 1080p
• Scan Type: Progressive
• Noise Reduction: 3D NR
• White Balance: Auto / Manual
• Sensitivity: 510 mV
• Interfaces: HDMI output or USB-2 computer connection
• Storage: 8 GB SD card or PC hard drive (via USB)
• Mounting: C-mount interface
• Power Supply: 100–240 V AC to 12 V DC / 2 A
• Operating Temperature: 0°C to 60°C
• Humidity Range: 45–85%
• Dimensions: 80 × 70 × 90 mm
• Software: ImageFocus (Windows & macOS) included
• Microscope C-mount coupler required (contact us for options)
• Delivery: Approx. 2–3 weeks
