Description

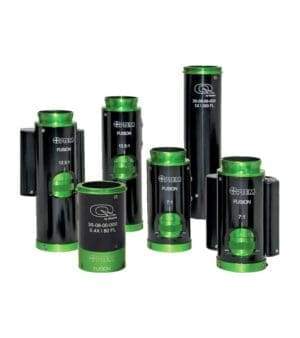

Optem 70xl Zoom system

The XL stands for Xtended life and encompasses superior engineering and high-quality components in its construction. It’s robust optomechanics are good for over 250,000 zoom cycles and is ideal for applications where variable field of view is essential. Like many of the zoom systems here it’s modular and can be configured specifically to suite individual tasks with its three part construction.

Selectable Optical Properties

• Utilising lower lenses
  • 7:1 Ratio Zoom
  • Magnification range: 0.051x – 21x
  • Working Distance Range: 468mm – 32mm

• Utilising high magnification objective lenses
  • 7:1 Ratio Zoom
  • Magnification range: 0.36x – 100x
  • Working Distance: 34mm-20mm

Modular Options:

• Attach C-Mount digital cameras up to 1” sensor formats.
• Robust manufacture enduring 250,000 zoom cycles guaranteed.
• Manual / Manual detent (Click stop) referencing points on zoom.
• Adjustable Iris integration for further DOF (Depth of Field) control.
• Choose Coaxial, Oblique or Ring light LED illumination.
• Incorporate Lower lenses or Mitutoyo LWD objectives for greater magnifications.
• Built in manual fine focusing selectable.
• 2 different mounting solutions available for seamless system integration.
• Right angle space saving orientations ideal for production environments.

 Configurable Power:

The Optem 70xl Zoom system simplifies building a micro imaging system to suit your needs with virtually infinite module combinations and additional functions and features.

Contact Best Scientific:

For vision system applications demanding improved optics, reach out to Best Scientific. Our team will assess your requirements meticulously, providing a tailored quote for the most suitable Fusion configuration to meet your unique needs. Upgrade your vision system with Optem Fusion, extreme Micro-Imaging versatility.
