Description

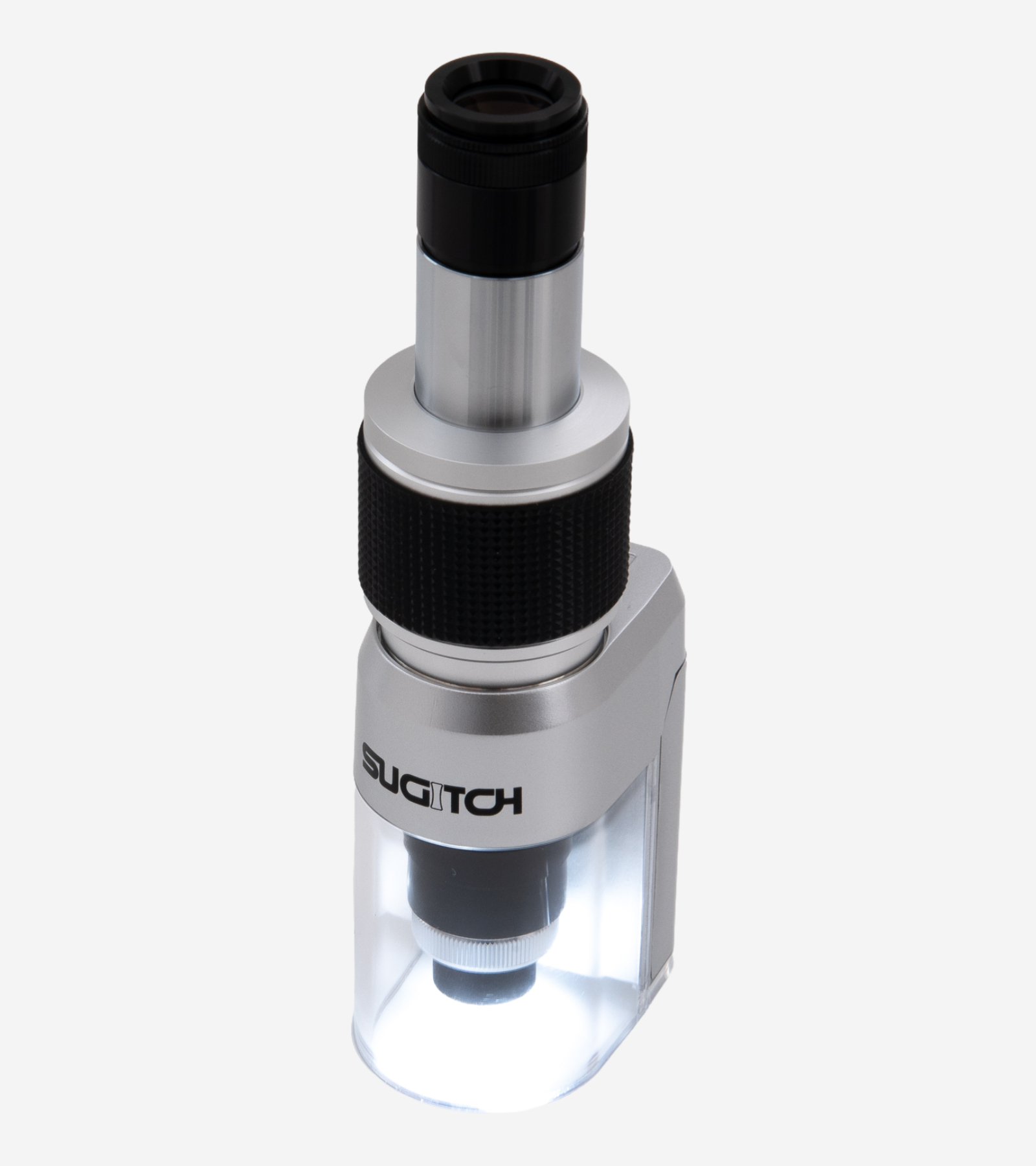

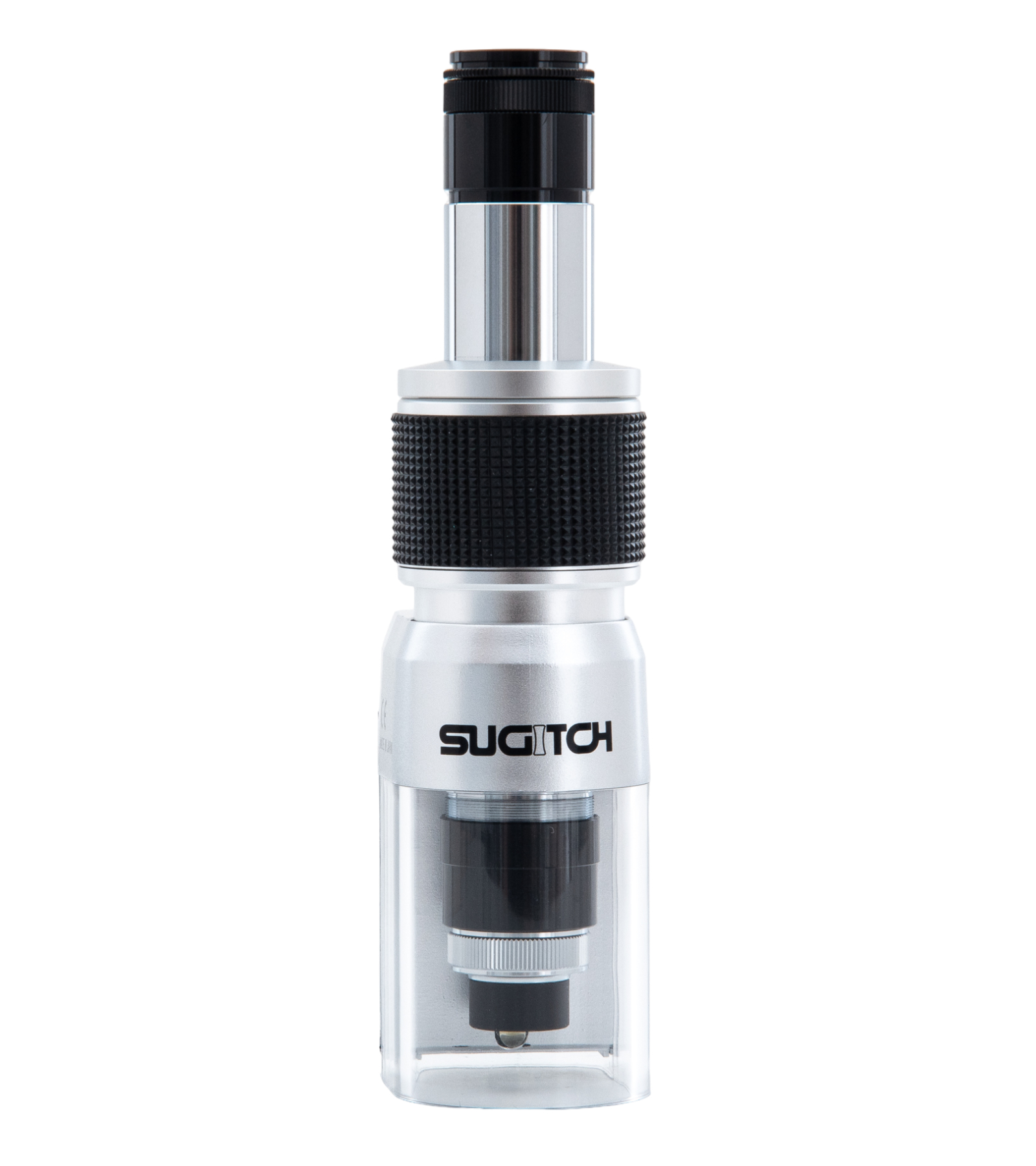

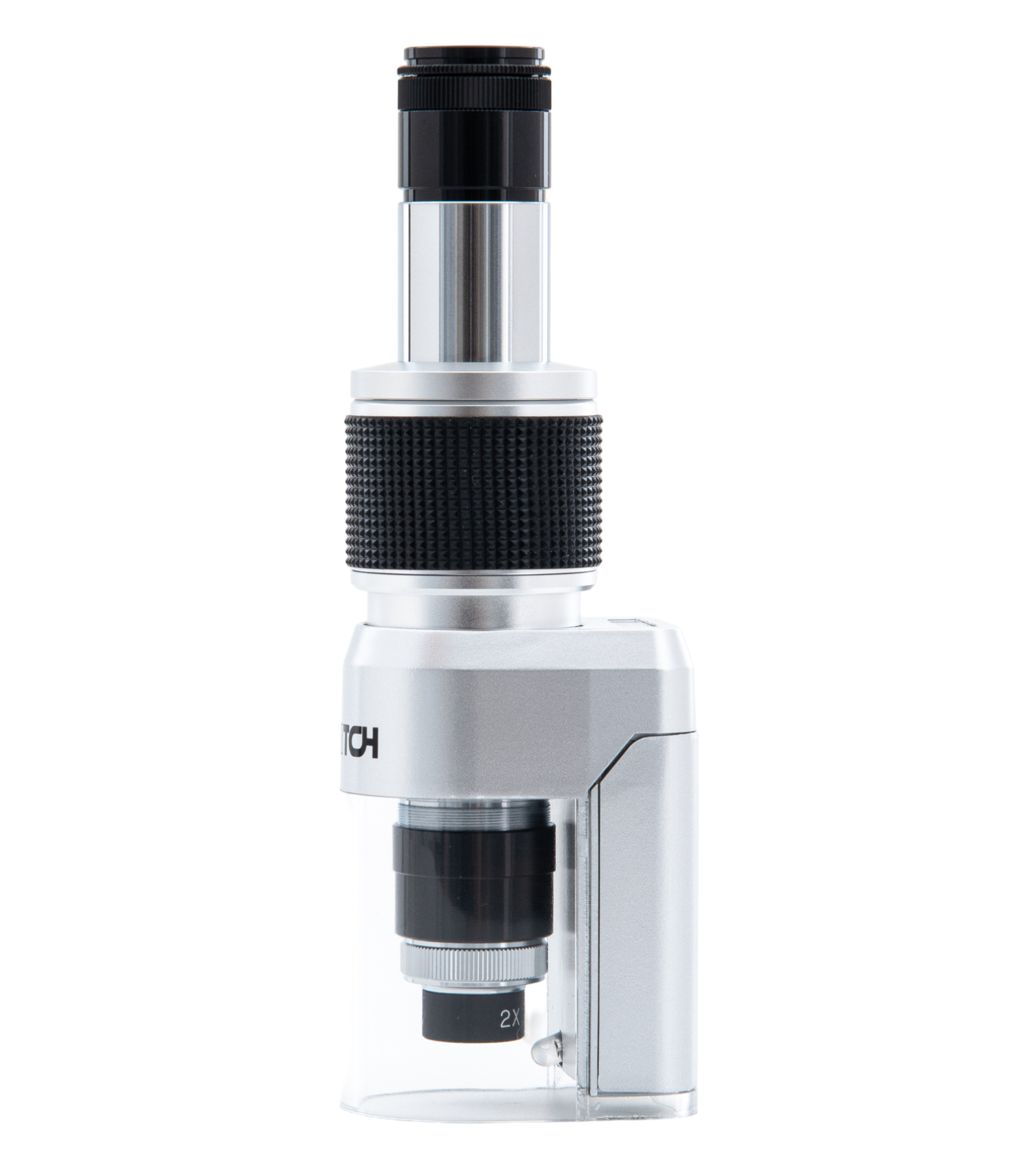

Introducing the Sugitoh TS-7LE Micrometer Portable Microscope, with built in LED lighting. A cutting-edge portable measuring microscope designed for enhancing projections and depressions via oblique light illumination. It is widely used outside for inspection of cracks in concrete and railway infrastructure. Its user-friendly design, portability, and high magnification capabilities make it an ideal solution for on-the-go fault and defect identification.

Key Features:

• Fixed Magnification: Benefit from consistent field-of-view optics, ensuring precision and reliability in your observations.
• Upright Image: The built-in prism in the optical system ensures that operators can view correctly orientated images, providing a clear and accurate representation of the sample.
• Graticule Integration: Perform object length measurements effortlessly with the precision scale bar internally mounted to the eyepiece barrel.
• Oblique LED Lighting System: Ideal for fault finding and observation of metal surfaces. Powered by AAA batteries.

Modular Option:

• Camera Attachment: Seamlessly integrate a C-Mount camera for image capture and live display on a computer or HDMI monitor.

4 Models available:

1. TS-7LE-20LDW: 20x Magnification, 9mm Field of View.
2. TS-7LE-50LDW: 50x Magnification, 3.6mm Field of View.
3. TS-7LE-100LDW: 100x Magnification, 2.1mm Field of View.
4. TS-7LE-200LDW: 200x Magnification, 1.05mm Field of View.

If you require high-end optics on the go, our TS-7ED Portable Microscope is your go-to choice. For a seamless optical vision system tailored to your QC and inspection needs, reach out to Best Scientific. Our team will meticulously assess your requirements and provide a customized quote for the most suitable portable microscope. Our mission is to ensure all products meets your unique specifications.

Elevate your inspection with Sugitoh Portable Microscopes– where precision meets portability.
