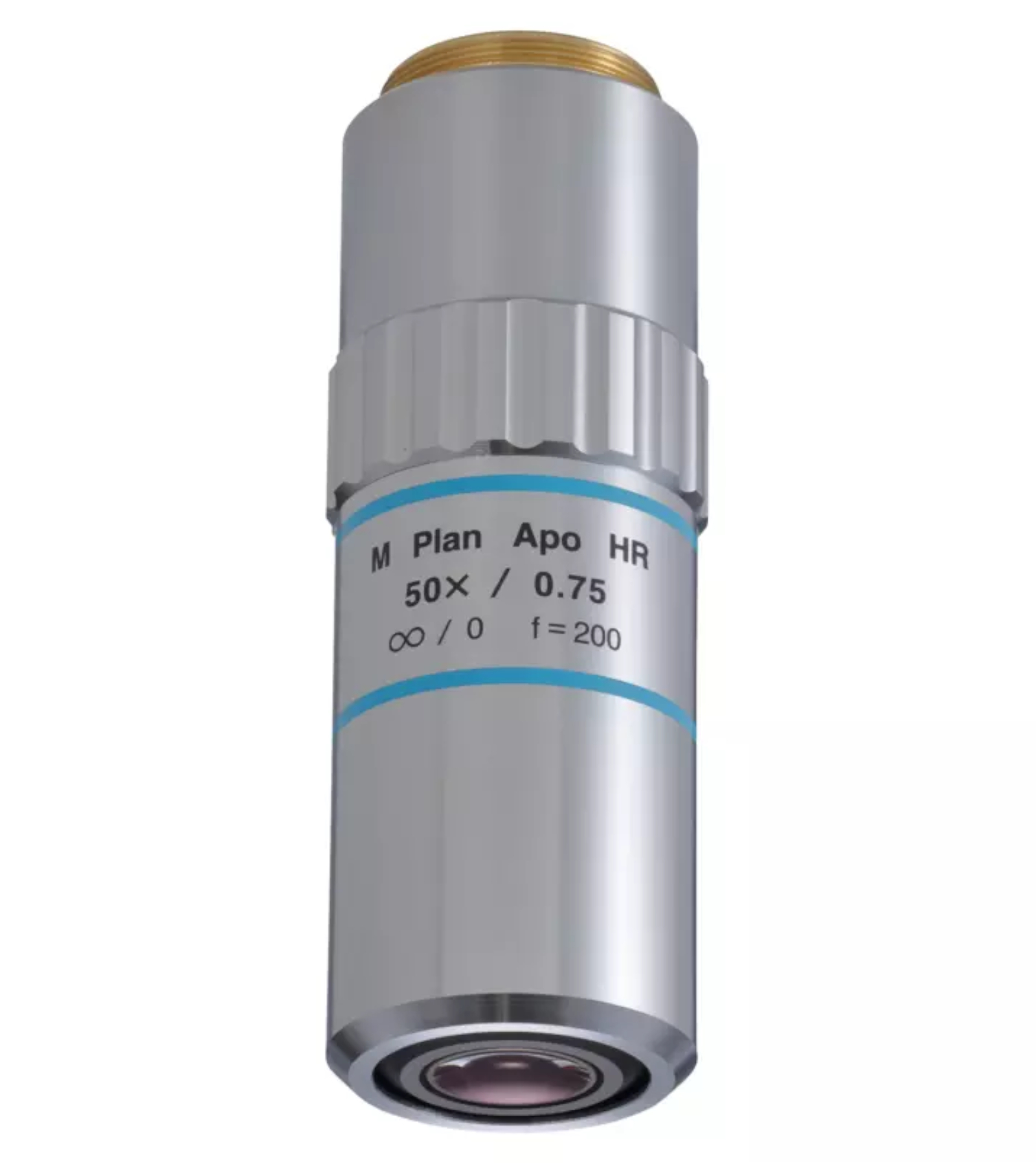

50× Mitutoyo M-Plan Apo HR Objective Lens

Mitutoyo 50× M-Plan Apo HR Objective Lens – ultra-high-resolution apochromatic lens with 5.2 mm working distance for micro-feature imaging.

£4,270.00 ex VAT

Available on back-order

SKU 378-814-4 Category Tags , , , , ,

Description

The Mitutoyo 50× M-Plan Apo HR Objective Lens (378-814-4) is designed for microelectronics, semiconductor, and fine-feature inspection where maximum resolution is required. With a 0.75 NA and 0.3 µm resolving power, this HR lens captures intricate detail at 50× magnification.

Despite its high NA, it maintains a practical 5.2 mm working distance, ensuring compatibility with a range of setups. The plan-apochromatic, infinity-corrected design ensures colour accuracy and flat-field imaging across the visible spectrum.

50× Mitutoyo M-Plan Apo HR Objective Lens Specifications:
  • Part Number: 378-814-4
  • Magnification: 50×
  • Numerical Aperture (NA): 0.75
  • Working Distance (WD): 5.2 mm
  • Focal Length: 4 mm
  • Resolving Power: 0.3 µm
  • Depth of Field: 0.49 µm
  • Thread: M26 × 36T
  • Parfocal Distance: 95 mm
  • Tube Lens: 200 mm
  • Wavelength Range: 436–656 nm

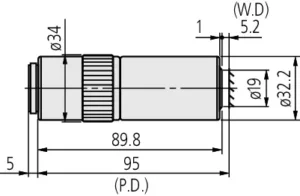

  • Dimensions: 89.8 mm (L) × 34 mm (ø)
  • Weight: 400 g
  • Delivery: 2–3 weeks approx.
Mitutoyo M-Plan Apo HR Series Features:
  • Plan-corrected optics provide a flat image across the entire field of view
  • High-resolution apochromatic design for superior chromatic correction (red, blue, yellow)
  • Higher numerical apertures (NA) for enhanced contrast and resolving power
  • Infinity-corrected design ensures seamless integration into optical and vision systems
  • Brightfield observation optimised for the visible spectrum (436–656 nm)
  • Optimised working distances to balance maximum resolution with practical usability
System Integration:

The Mitutoyo 50× M-Plan Apo HR Objective Lens is designed for seamless use in advanced microscopy and machine vision systems, including:

Relevant Case Studies:

contact us for full system configuration, quotation, build, and supply.

Compare Mitutoyo M-Plan Apo & HR Objective Lenses:

The Mitutoyo M-Plan Apo series offers both standard long working distance objectives
and HR (High Resolution) versions for applications that demand maximum resolving power.
All models are infinity-corrected, plan-apochromatic, and optimised for brightfield imaging.

Magnification NA Working Distance Resolving Power Depth of Field
Standard M-Plan Apo Series
1× 0.025 11 mm 11 µm 17.4 µm
2× 0.055 34 mm 3.0 µm 5.8 µm
5× 0.14 34 mm 2.0 µm 2.3 µm
7.5× 0.21 34 mm 1.3 µm 1.4 µm
10× 0.28 34 mm 1.0 µm 1.0 µm
20× 0.42 20 mm 0.7 µm 0.5 µm
50× 0.55 13 mm 0.61 µm 0.4 µm
100× 0.70 6 mm 0.39 µm 0.3 µm
High Resolution (HR) M-Plan Apo Series
5× HR 0.21 27 mm 1.3 µm 6.2 µm
10× HR 0.42 15 mm 0.7 µm 1.6 µm
50× HR 0.75 5.2 mm 0.3 µm 0.49 µm
100× HR 0.90 1.3 mm 0.3 µm 0.34 µm

Note: HR objectives provide higher NA and resolving power than standard versions, often with shorter working distances. Choose based on the balance between resolution needs and sample accessibility.
